1PCS CREE XML2 LED XM-L2 Diode T6 U2 10W WHITE Neutral Warm White Flashlight chip bulb Red Green Blue UV High Power LED Emitter

Price: US $2.63

Purchase now

SAVE 15%! The Besf Offer 1PCS CREE XML2 LED XM-L2 Diode T6 U2 10W WHITE Neutral Warm White Flashlight chip bulb Red Green Blue UV High Power LED Emitter From HotRed OTLED Store

1PCS CREE XML2 LED XM-L2 Diode T6 U2 10W WHITE Neutral Warm White Flashlight chip bulb Red Green Blue UV High Power LED Emitter

You Get Discount 15% Original Price is US $3.09, If You Buy it Now until 2018-09-24 You Just Pay For US $2.63 Buy It Now

1PCS CREE XML2 LED XM-L2 Diode T6 U2 10W WHITE Neutral Warm White Flashlight chip bulb Red Green Blue UV High Power LED Emitter

Product Description

Pls Note:XML2 Cold White/Neutral White/Warm White is Original CREE LED.

                Red/Green/Blue/Lake Blue/Pink/UV/Golden Yellow 20000K is                             EPILEDS.(cree no produce these colors)

_



1-PCS-CREE-XML2-XM-L2-LED-T6-U2-10W-WHITE-Neutral-White-Warm-White-High_



1-PCS-CREE-XML2-XM-L2-LED-T6-U2-10W-WHITE-Neutral-White-Warm-White-High.jpg_640x640

XLamp XM-L2 Highest-Performing, Commercially Available, Single-Die LED
Delivering breakthrough lumen output and efficacy in the XM package, the XLamp XM-L2 LED is the highest-performing, commercially available, single-die LED. Built on the SC⊃3; Technology Platform, the XLamp XM-L2 LED delivers up to 20% more lumens and lumens-per-watt and double the lumens-per-dollar of the original XM-L. The XM-L2 LED offers the unique combination of high efficacy and high lumen output at high drive currents, delivering an unprecedented 1198 lumens at 116 lumens-per-watt efficacy at 3 A, 25°C.



Features:
Maximam drive current: 3000mA
Low thermal resistance: 2.5C/W
Maximum junction temperature: 150C
Viewing angle: 125\'
ANSI-compatible chromaticity bins
Unlimited floor life at <30C/85% RH
Reflow solderable-JEDES J-STD-020C
Electrically neutral thermal path


Technical Parameters:
Quantity:1pcs
Model Type: Cree XML2-T6
Emitted Color :Cold White/Neutral White/Warm White/Red/Green/Blue/UV/Pink/Lake Blue/Golden Yellow

Color Temperature: 6500K/4500K/3000K/ 620-630nm/520-530nm/450-455nm/395-400nm

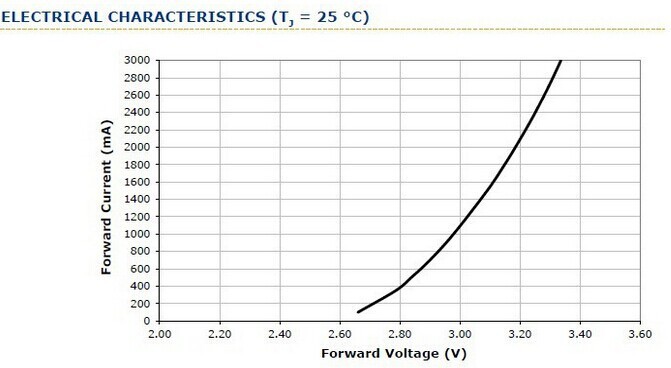

DC Forward Voltage (VF): 2.9-4Vdc
Red Color is 2.2-2.4V
DC Forward Current (IF): 3.0A
Power: 10W
Low thermal resistance: 2.5°C/W
Maximum junction temperature: 150°C
Viewing angle: 125°
Diameter :12mm/14mm/16mm/20mm
ANSI-compatible chromaticity bins
Unlimited floor life at ≤ 30oC/85% RH
Reflow solderable - JEDEC J-STD-020C
Electrically neutral thermal path
T6 T61 T62 T63 T64

Attention to the heat,working temperature maintained at 50 degrees Celsius or lower as possible

__________



Features:


  • Very low heat generating, saving energy, environmentally friendly.
  • Long service life.
  • Low consumption, high brightness.
  • Comfortable light source, harmless for skin and eyes.
  • Great for making light sources for fish tank, decoration light, etc
  • Made of high quality material, durable for daily us
  •



 Package Included:


  1PCS  CREE XML2 Led Emitter as you selected.
