5pcs / lot KCD4-202N perforate 26 x 22 mm 6 pin ON - ON boat rocker switch power switch with 220V light

Price: US $1.34

Purchase now

SAVE 0%! The Besf Offer 5pcs / lot KCD4-202N perforate 26 x 22 mm 6 pin ON - ON boat rocker switch power switch with 220V light From Finglai Electric

5pcs / lot KCD4-202N perforate 26 x 22 mm 6 pin ON - ON boat rocker switch power switch with 220V light

You Get Discount 0% Original Price is US $1.34, If You Buy it Now until 2019-04-27 You Just Pay For US $1.34 Buy It Now

5pcs / lot KCD4-202N perforate 26 x 22 mm 6 pin ON - ON boat rocker switch power switch with 220V light

Product Description

KCD1 KCD6 KCD7 series rocker switch with 26x22 mm perforate dimensions

finglaiModel number and parameters
Model number Same model Action method Contact form Color code Lamp voltage Related product
KCD4-201   Self-lock ON-OFF B   Order
KCD4-201N   Self-lock ON-OFF RG 220V, 9V-24V bulb; 9V-24V LED Order
KCD4-201R   Reset (ON)-OFF B   Order
KCD4-202   Self-lock ON-ON B   Order
KCD4-202N   Self-lock ON-ON RG 220V Visiting...
KCD4-202R   Reset (ON)-ON B   Order
KCD4-203   Self-lock ON-OFF-ON B   Order
KCD4-203R   Reset (ON)-OFF-(ON) B   Order
KCD6-202N   Self-lock ON-OFF RG, 2R2G 220V Order
KCD6-203   Self-lock ON-OFF-ON B   Order
KCD7-201N KCD7-2211N Self-lock ON-OFF RG 220V Order
KCD7-202N KCD7-2211N Self-lock ON-ON RG 220V Order
finglaiGeneral
Model number KCD4 KCD6 KCD7 series
Perforate dimensions 26 0.50x22 0.50 mm
Contact rating 15A@250VAC
Contact resistance 50mΩ max
Insulation resistance 100MΩ min at 500Vdc
Dielectric strength 1500Vac, 50Hz for 1min
Electrical Life 10000 cycles
Matched plug spring terminal 6.3mm mounting size with jacket
Matched waterproof cap FJ2622
Operating temperature -25-85 °C
PCS/Bag 50

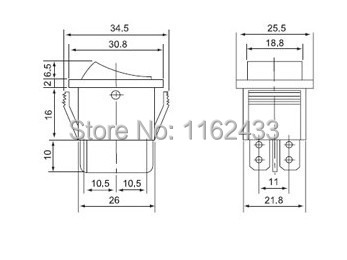

finglaiKCD4 KCD6 KCD7 series rocker switch drawing
KCD4 KCD6 KCD7 series rocker switch drawing

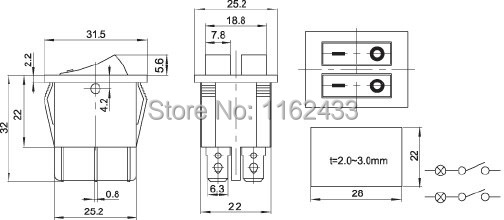

finglaiKCD6 double light rocker switch drawing
KCD6 double light rocker switch drawing
