200V 20A 150W adjustable Constant Current Electronic Load Battery Tester 12V24V48V Lead-acid lithium Discharge Capacity meter

Price: US $25.58

Purchase now

SAVE 20%! The Besf Offer 200V 20A 150W adjustable Constant Current Electronic Load Battery Tester 12V24V48V Lead-acid lithium Discharge Capacity meter From ATORCH Innovative Manufactory Co., Store

200V 20A 150W adjustable Constant Current Electronic Load Battery Tester 12V24V48V Lead-acid  lithium Discharge Capacity meter

You Get Discount 20% Original Price is US $31.97, If You Buy it Now until 2018-11-27 You Just Pay For US $25.58 Buy It Now

200V 20A 150W adjustable Constant Current Electronic Load Battery Tester 12V24V48V Lead-acid  lithium Discharge Capacity meter

Product Description

A3/A3-B USB tester Color Bluetooth Type-C Digital voltmeter voltage current meter ammeter detector power bank charger indicator

zhutu1

ATORCH 150W Constant Current Electronic Load 200V20A Battery Tester Discharge Capacity Tester meter 12V24V48V Lead-acid  lithium

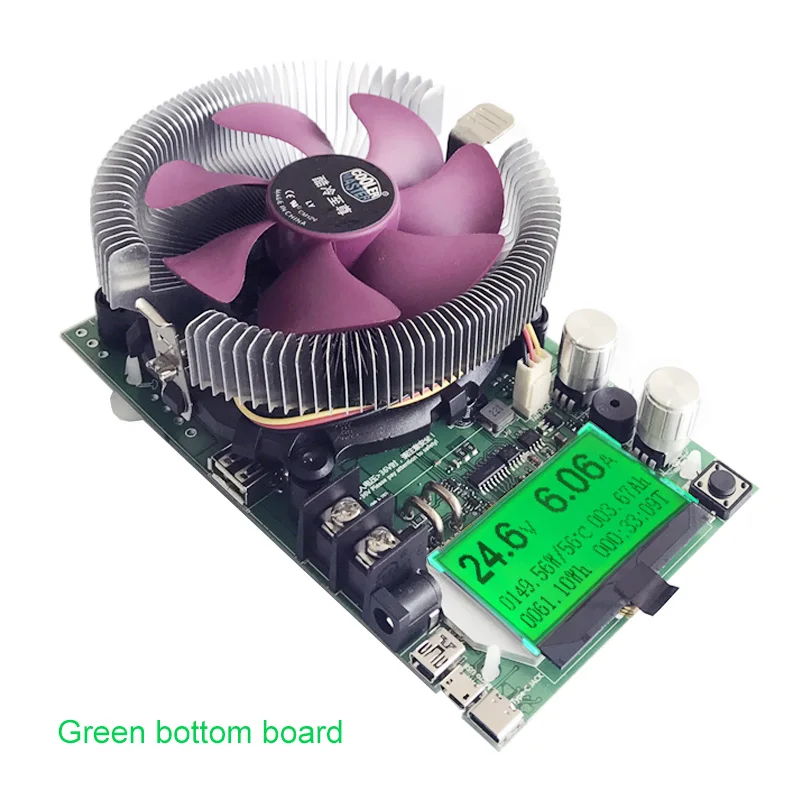

Note:2018-5-4 due to customer demands to product upgrade,  Green Color Board random delivery!

Thank you! Date:2018-5-4-1



4

150W--1

Can used us plug and Eu plug!

9V1A

3

5(2)

Test the 18650 battery

1-1623

150W-_01150W-_02150W-_03150W-_04150W-_05150W-_06150W-_07

150W-2150W

Use of introduction and specifications:

150W


Description for Function Key :

1)  Keep Press long time the key: Zero all data(mAh,Wh,00:00:00)
2)  Double-click the key: for the Capacity data reset to zero
3)  Three-click the key:for the electric quantity data reset to zero
4)  Four-click the key: for the time data reset to zero
5)  Five-click the key: Auto-Standby Mode & Timer for discharge alert
6)  Single-click to change the window, entering the setup window for
high&Low Voltage background light, adjust the parameters by
double-clicking or three-clicking, click-holding for continuous and
quick adjust.
7)   Without load,quickly click the key for 7 times, for current data
reset to zero(0.00A).It is for Precise calibration in local circumstance,
 so that the small current could be precisely measured.
8)  Keep pressing the key when power-off, then power-on, entering
the Background setup window for High&Low Voltage over-load,
single-click or double-click to adjust the parameters, keep press
the key long time to reset to the default setup
(Note: Please don\'t calibrate the voltage or current if without
standard  instruments)

 Instruction for Connection and Operation :
1) Open the package, insert the power adapter into the end of the
 product and supply the power.
2) Anti-clockwise rotate the two current knobs to the lower limit.
3) Connecting the Power Supply under test to the product
according to the diagram above, and the current Input Voltage
value will be read out. Keep pressing the key to reset all data to zero;
4) Slowly clockwise rotate the two current knobs (coarse&fine) to
adjust the current to the rating value of the Power Supply(The current
should be slowly adjusted, using the fine knob priority, the
coarse knob could be only used under large current condition.)
5) When testing the battery, Low voltage discharge limit should
be set up, to avoid the possible damage caused by over discharging
while discharge capacity test of the battery.

SPECIFICATIONS:
Supply Voltage/ Interface:DC6~12V / DC 5.0 or Micro USB
Voltage measure Range:0.00V~200V     Accuracy:0.05V
Current Adjustable Range:0.00A~20A    Accuracy:0.05A
Capacity measure Range:0~999.999Ah    Accuracy:0.01Ah
Power cumulative range:0~99999.9Wh  Accuracy:0.01Wh
Power measure Range:0~2999.99 W   Accuracy:0.01W
Impedance measure Range:1~999.9 ohm  Accuracy:0.01
Temperature Range :0~99℃   Accuracy:1℃
Max Timing:999H59M59S    Accuracy:1S
Cooling Fan Power:<150W/<180W (Fan could be changed
for different cooling power)
Fan controlling gate: The cooling fan auto-started while the
current>0.5A or the Temperature >45℃
Input/Output:20A biting screw + USB
Refresh time:>500mS/time
measure rate:about 2s/time
Over voltage and over current alert method:Display warning
 window and voice warning
Protecting Voltage setting Range:1~300V
Low Voltage setting Range:0~149V
Protecting Current setting Range:0.2~100A
Protecting Power setting Range:185W
Display Type:Micro power consumption, LCM module, black
font, green backlit, Chinese&English
Size:160x95x60mm
Consumption Current:<1.5A
Operating Temp.:-10~+60℃
Operating Humidity::10~80℃ Condensation )
Operating Pressure:80~106kPa

Warning:
1) The two current knobs should be set at the lower limit
before using(Counterclockwise Adjust to the end Double
current knobs to 0.00A)! Then increase the current slowly.
2) When the voltage >36V, please attention to
safety! Avoid electric shock
3) Several Powers should not be connected at the same
time, avoid the over voltage or current to damage your power
 supply.
4) Slowly adjust the current while observing the displayed
value, avoid the instant large current overloaded.
5) Be sure to obey the law of conservation of energy, the
product of the voltage and the current should less than 150W.

end!
