A2212 2212 980KV 1000KV 1400KV Brushless Outrunner Motor 30A Brushless ESC for DIY RC Aircraft Quadcopter Hexacopter Multirotor

Price: US $5.59

Purchase now

SAVE 40%! The Besf Offer A2212 2212 980KV 1000KV 1400KV Brushless Outrunner Motor 30A Brushless ESC for DIY RC Aircraft Quadcopter Hexacopter Multirotor From Sky RC Hobby Store

A2212 2212 980KV 1000KV 1400KV Brushless Outrunner Motor 30A Brushless ESC for DIY RC Aircraft Quadcopter Hexacopter Multirotor

You Get Discount 40% Original Price is US $9.32, If You Buy it Now until 2019-06-23 You Just Pay For US $5.59 Buy It Now

A2212 2212 980KV 1000KV 1400KV Brushless Outrunner Motor 30A Brushless ESC for DIY RC Aircraft Quadcopter Hexacopter Multirotor

Product Description


Item Description

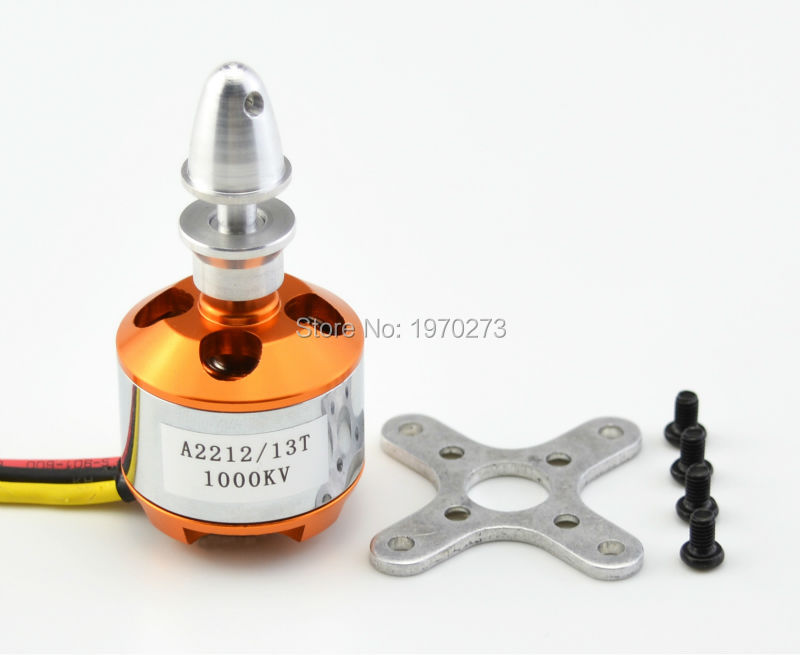

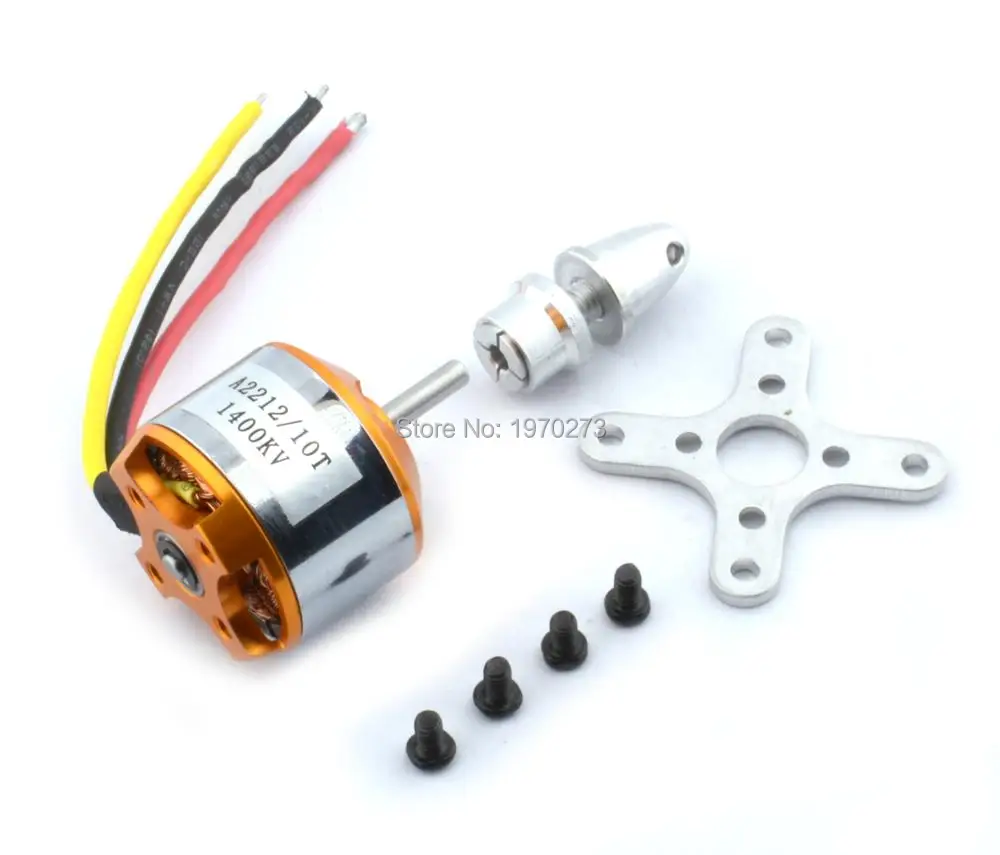

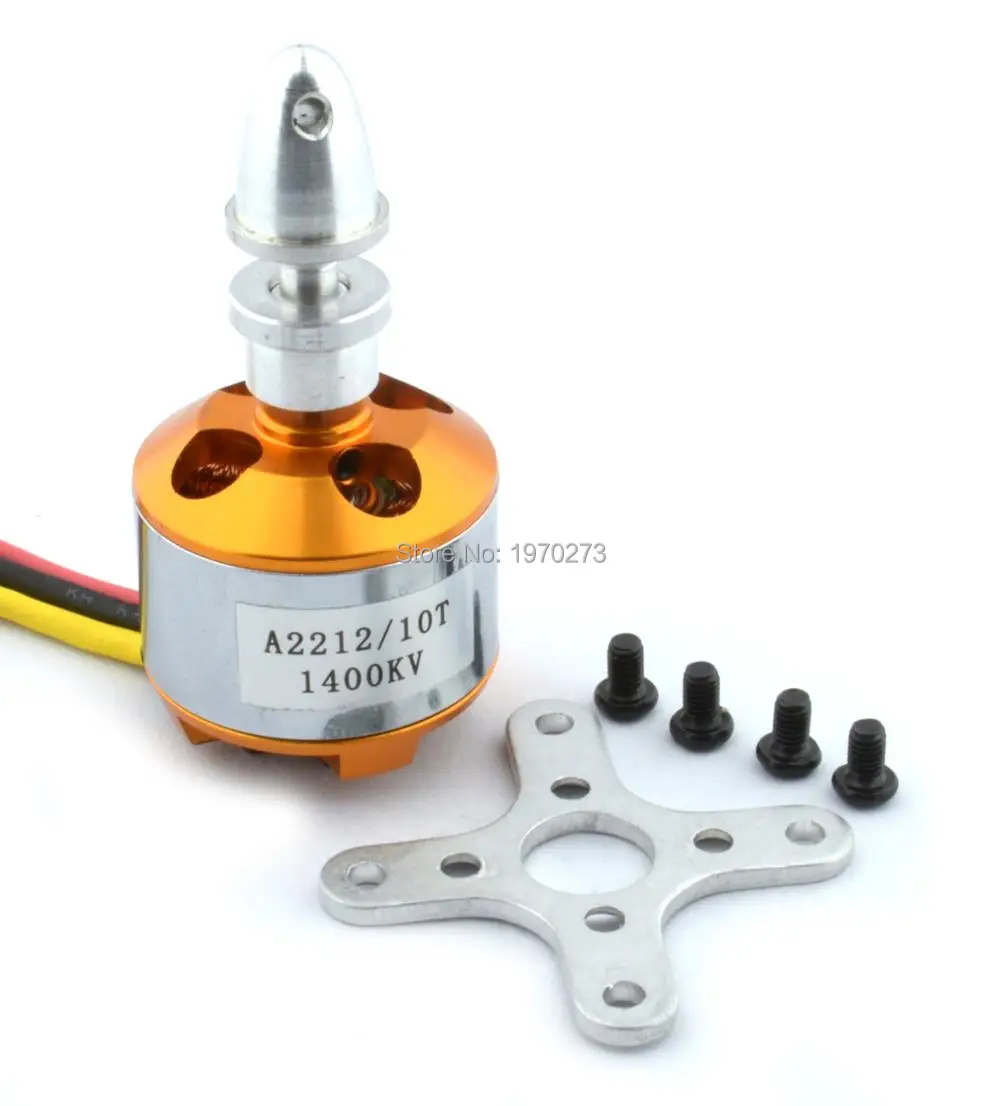

A2212 1000KV / 1400KV Motor:



KV: 1000kv / 1400kv

Max Efficiency: 80%

Max Efficiency Current: 4-10A (>75%)

Current Capacity: 12A/60s

No Load Current @ 10V: 0.5A

No. Of Cells: 2-3 Li-Poly

Motor Dimensions: Φ27.5 x 30mm

Shaft Diameter: Φ3.17mm

Weight: 47g/set

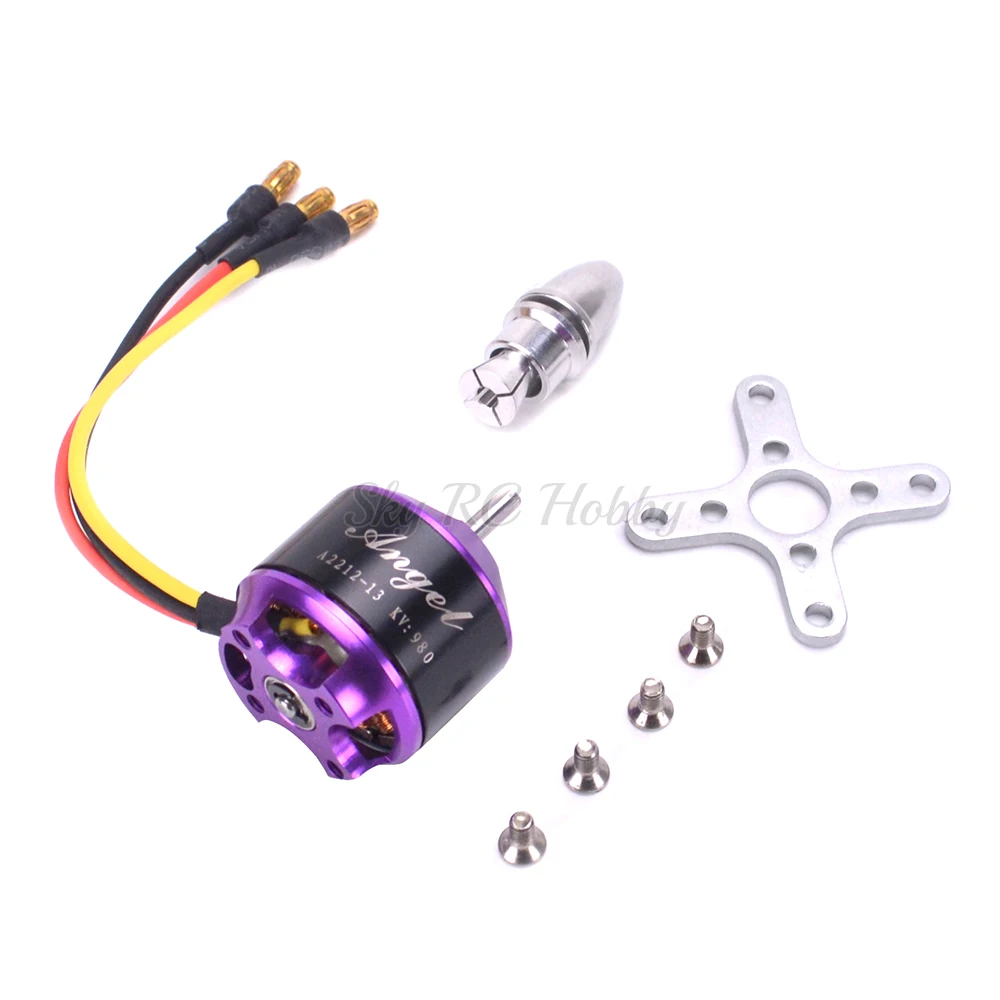

A2212 980KV motor:

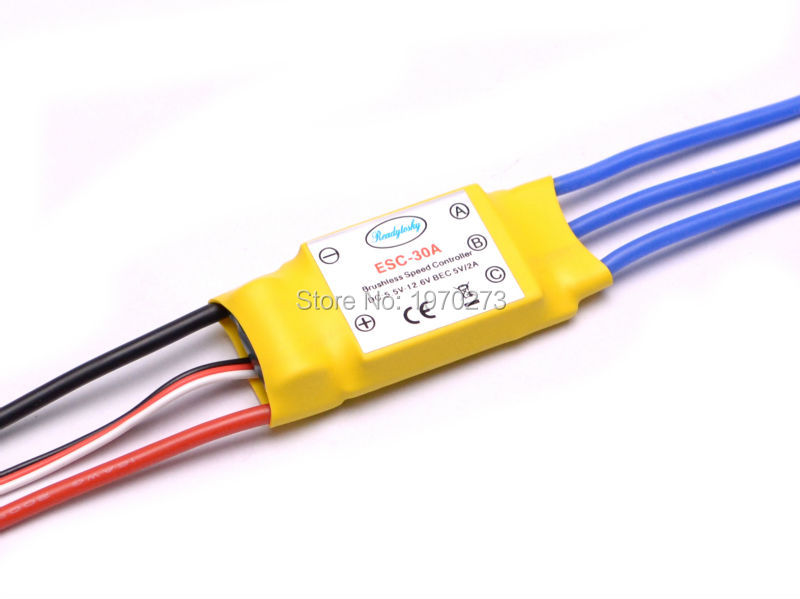

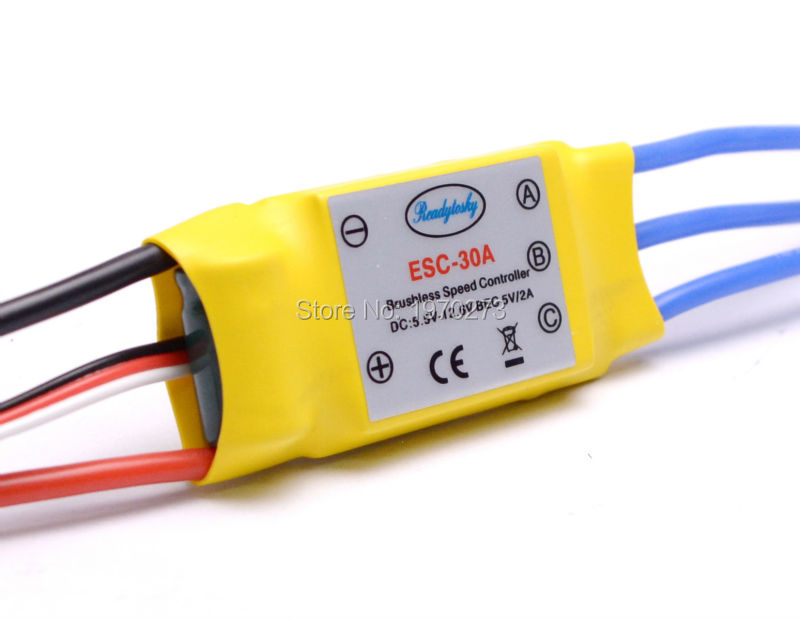

30A ESC Description


Feature

30A: an instant 45 A, 40A continuous 10 seconds

Size: 30A-45 X 24 X 8mm

voltage range: 4 V-16V

battery number :4-12 NIMH 2-3LIPO (4LIPO BEC does not allow the use of output)

BEC output: 30A, stressed: 5 V 3A. 2LIPO 4-5 micro-steering gear 3 LIPO 3-4 micro-steering gear /

Protection features: automatic selection 2-3 LIPO were protected voltage is 6 V/9V; automatically elected NIMH, each protected voltage is 0.8 V;

security started, throttle position does not prohibit started temperature protection, the surface temperature of 110 degrees downtime; out of control

protection, without Signal one second after the shutdown.

Property Description: speed limit, within a 2 to as high as 300,000 to 12 to 50,000, to a very, very foreign to the 14 to 42,000. 8KHz PWM control,

the use of speed control curve. Automatically adapt to the accelerator, more suitable for remote control devices.

The use of BEC, MCU separate power supply, a more stable work.

Notice: this 30A can not be programmed , becuse we have programed it when producing .



Package Included:    ( send as your choice )


1 x A2212 980kv / 1000KV / 1400KV Motor

1 x 30A ESC

1 Pair 1045 Propeller



Item Picture

DSC_0270 DSC_0271 DSC_0265 DSC_0196 DSC_0376 DSC_0367 DSC_0195 DSC_0193
